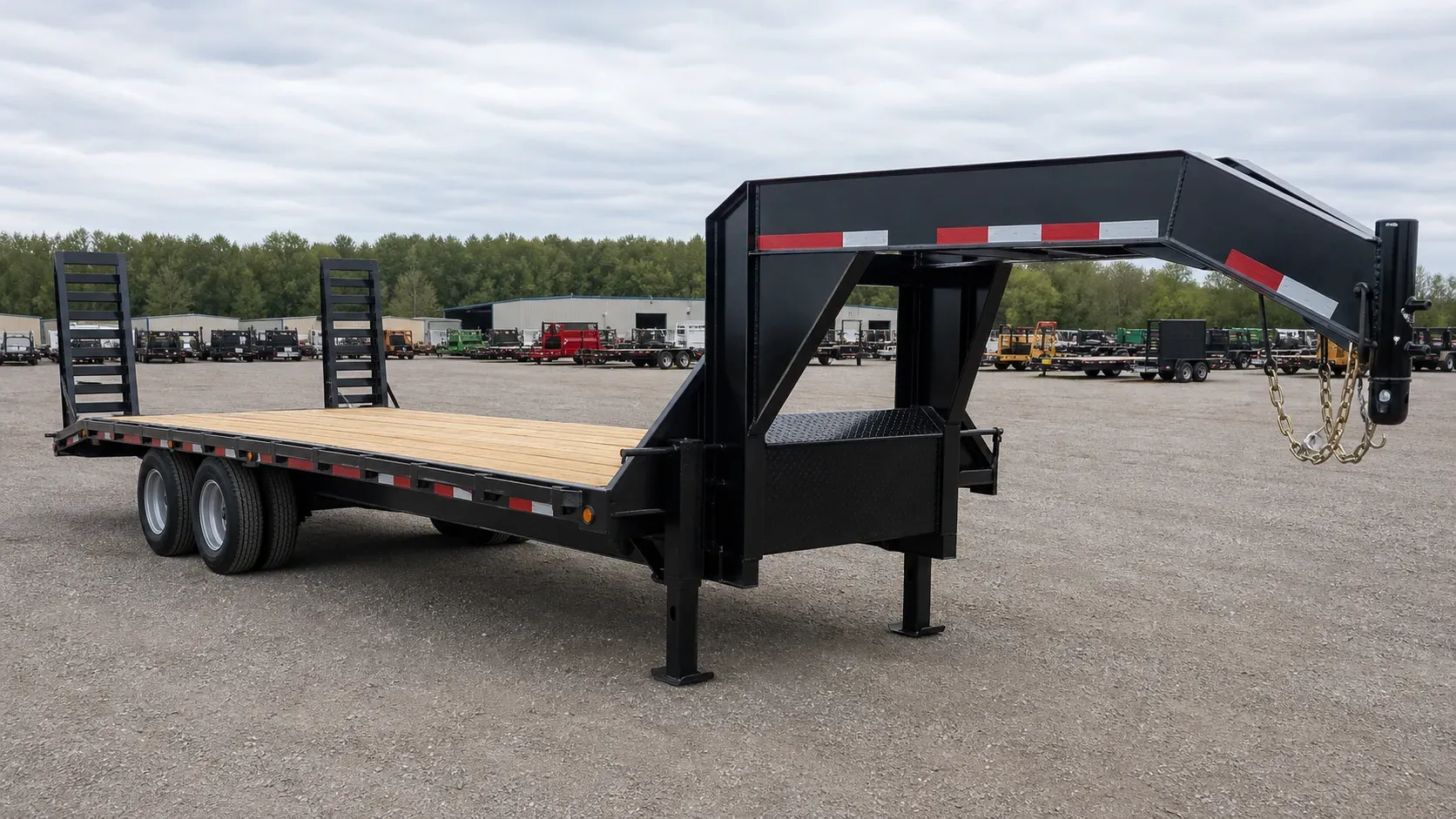

The 20,000-Pound Trailer Class Explained.
The 20,000-pound class is the gooseneck world's middle. Tandem 10,000-pound axles carry an honest 13,200 to 15,800 pounds under the equipment decks, dumps, and flatbeds that move real machines and material volume. Pin weights of 3,000 to 5,000 pounds put one-tons under it and duallys at its top, and commercial combinations here live past the CDL line by design. This is the working gooseneck tier.
The gooseneck middle
Tandem 10,000-pound axles build the class, and it sits entirely in gooseneck territory by the physics the comparison settled. Its market is the working heart of every heavy ecosystem on this site: gooseneck equipment decks under excavators, gooseneck dumps moving material at fleet volume, gooseneck flatbeds at the heavy ag tier, and the deckover freight decks the hotshot world's entry classes run.
The payload subtraction lands at 13,200 to 15,800 pounds against empty weights of 5,500 to 6,800, real machine capacity. That's the popular excavator classes with attachments, ten-plus yards of dense material, or the hay counts the ranch page stacks. Pin weight runs the truck math, 15 to 25 percent putting 3,000 to 5,000 pounds in the bed. One-ton SRW placards carry the class's lower half, and the dually takes its top.
The paperwork is commercial by arithmetic. A 20K trailer behind a working truck crosses 26,001 combined pounds without trying, so CDL operation is the tier's working assumption, per the rules. The ag exemptions ranch buyers lean on are bounded exactly as that page warns.
The class at a glance
| Spec | Typical Range |
|---|---|
| GVWR | 20,000 to 22,000 lb |
| Empty weight | 5,500 to 6,800 lb |
| Honest payload | 13,200 to 15,800 lb |
| Axles | Tandem 10,000-lb |
| Brakes | All axles, electric or EOH |
| Tires | 16 to 17.5 in, load range G |
| Tow vehicle | One-ton, dually at the top |
The equipment tier runs commercial spec. Electric-over-hydraulic brakes are common and worth the option, dual 12K jacks are standard, and the G-rated rubber needs to be dated and pressured per the tire page. Then there's the scale-and-inspection rhythm the weights enforce. The class above, per the 24K-and-up page, is more of everything, compliance included.
20,000-pound class FAQ
What can a 20,000-pound trailer carry?
An honest 13,200 to 15,800 pounds, the popular excavator classes with attachments, fleet material volume, or heavy hay counts.
What truck does the class need?
One-tons by pin math, 3,000 to 5,000 pounds against the placard, SRW at the class's bottom and the dually at its top.
Is a CDL required?
Commercial combinations here cross 26,001 pounds by design, so plan on yes, with ag exemptions bounded per the rules.
Why is everything at this rating a gooseneck?
Pin-over-axle physics, per the comparison. The receiver's honest numbers ran out a class below.
20K or 24K-plus next?
The heaviest machine plus attachment plus margin decides, per every equipment page. Growing fleets buy the class above once.
